Multi-Electrode Geoelectrics
by Simon Schneider, Department of Earth and Environmental Sciences, Munich, Germany

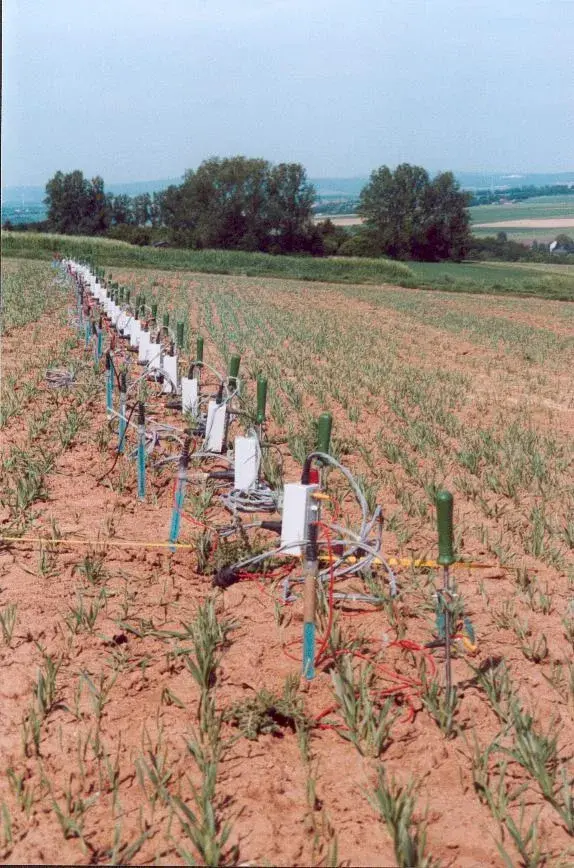

Multi-Electrode DC Resistivitiy Meassurements ith the SIP-INstrument. The MEeassurements where taken near Laubenheim, Nahe, Germany to get an inside look into the terrase structures of the rivers Rhein and Nahe. The metal sticks (with green haft) are the actual electrodes, the grey boxes are discrete operating system components to enable the SIP to meassure variouse electrode configurations. More information: simon@geotechnologien.de
